Deploying Citrix Ingress Controller with Kubernetes

Citrix Ingress Controller is a niche but seriously interesting innovation from Citrix – developed in order to bring an enhanced application delivery capability to the Kubernetes container orchestration platform. This article is intended to communicate some basics of Kubernetes and ingress using Citrix ADC, but more-so to highlight some specific gaps in the documentation which are no longer appropriate for Kubernetes 1.16 and above due to API changes .

Many Citrix application and networking users will already be familiar with the hardware based or virtual Citrix NetScaler or ADC platforms, bringing L4 through to L7 load balancing, URL responder and rewrite features (amongst others) to conventional or virtualised networking environments. What you now have with Citrix Ingress Controller with ADC MPX/VPX is the ability to integrate Kubernetes with your existing ADCs, or introduce Citrix ADC CPX containerised NetScaler(s) such that you are able to deploy transient containerised NetScaler ADC instances within your Kubernetes platform enabling per-application networking services.

What is great about this solution is the way that it creates an automated API interface between Kubernetes and Citrix’s Nitro REST API of NetScaler. When a new containerised app is presented to the outside via a specially annotated ingress CIC will instantly create load balancing and content switching vservers along with rewrite rules for you, and even update/remove them when your container is modified or removed. This takes all of the manual work out of updating your ADC configuration on a per-app basis.

There are two basic ways in which to incorporate Citrix ADC into Kubernetes, namely ‘north-south’ and ‘east-west’ options. Familiar ingress solutions such as NGINX are often used within Kubernetes to attach the container networking stack to the outside world, since pod networking is normally completely abstracted from the user network in order to facilitate clean application separation. In a ‘north-south’ implementation you can think of the ingress controller (e.g. NGINX or Citrix ADC) as the front door to your application, with the remaining container based application networking presented through service endpoints within the backend network.

In an ‘east-west’ topology you can implement Citrix ADC CPX as a side-car to your container application in order to provide advanced ADC features within the Kubernetes network to enhance inter-container communication. This is a more advanced topology, but nonetheless directly intended for deployment within the Kubernetes infrastructure as a container. Citrix have a nice series of diagrams which highlight the tier 1 and tier 2 scenarios here.

Prerequisites

I’m going to be talking about bare-metal scenarios here rather than cloud based environments such Azure AKS, however to user these examples you will need to have created a Kubernetes 1.16 cluster first and be able to interact with it using kubectl. I have been using Rancher in order to build my Kubernetes clusters on vSphere, which in itself is a whole other subject which I hope to return to in a different post.. but you could always use something like MiniKube running within a desktop hypervisor (let me know how you get on!).

In order to use the implementation examples below you will need to have deployed a Citrix NetScaler MPX or VPX v12.1 / 13 in your network which is able to communicate with the Kubernetes API and cluster nodes. My lab uses a flat network range of 192.168.0.0/24 for instance, in which case the Kubernetes API is available on the same network as my NetScaler. However the backend pod networks are in the range 10.42.x.0/24 where each node hosts a separate range. Citrix Ingress Controller will take care of adding the network routes to these backend networks so they don’t have to be reachable from your desktop.

For the purposes of a lab type exercise it doesn’t matter if your Citrix ADC is used for other features, e.g. LB, Citrix Gateway because Citrix Ingress Controller will complement your infrastructure without replacing any of the existing configuration. It’s probably not a great idea to launch straight into this using your Production ADC instance though, best stick to the lab environment!

Create a system user on Citrix ADC

Your Citrix Ingress Controller will talk to NetScaler Nitro API directly using a user account which you define within Kubernetes. Perhaps you will use an existing user, or create a new one. For instance the following command will create a new user called cic on the NetScaler and create a new command policy:

add system user cic my-password
add cmdpolicy cic-policy ALLOW “^(?!shell)(?!sftp)(?!scp)(?!batch)(?!source)(?!.*superuser)(?!.*nsroot)(?!install)(?!show\s+system\s+(user|cmdPolicy|file))(?!(set|add|rm|create|export|kill)\s+system)(?!(unbind|bind)\s+system\s+(user|group))(?!diff\s+ns\s+config)(?!(set|unset|add|rm|bind|unbind|switch)\s+ns\s+partition).*|(^install\s*(wi|wf))|(^(add|show)\s+system\s+file)”

NB I’ve seen a problem with the above where the command might error out with an error concerning unexpected quotes character, it doesn’t seem to interfere with the creation of the command policy though.

In case you have any difficulties whilst attempting to recreate the steps in this post you can always try first using the ‘superuser’ command policy and then refine it until it matches the command permissions that you’re comfortable with.

In addition to this you may need to add additional rewrite module permissions if you’re going to use the rewrite CRDs, you can just tack these on to the end of the existing definition before the final quote mark:

(^(?!rm)\S+\s+rewrite\s+\S+)|(^(?!rm)\S+\s+rewrite\s+\S+\s+.*)

Finally, bind the newly created command policy to your new cic user.

bind system user cic cic-policy 0

Deploy Citrix Ingress Controller using YAML

This section is slightly different to that which is outlined in the actual Citrix Ingress Controller instructions. Please take care to understand the differences, they are mainly due to a desire to create better separation between components and configuration settings.

Create a new namespace to hold the secret and other CIC components. The commands below show the namespace entry in bold in case you choose to omit this and just place the components in the default namespace. It’s up to you, but for tidiness I created a namespace.

kubectl create namespace ingress-citrix

Create a new Kubernetes secret to store your Nitro API username and password. Using kubectl connect to your cluster and create a new secret to store the data.

kubectl create secret generic nslogin --from-literal=username=cic --from-literal=password=mypassword -n ingress-citrix

In my testing I ran into what I think is a Citrix documentation error for the above command where they show using single quotes around the name cic and mypassword values. Kubernetes converts these values into base64 encoding before they are stored, and might also include the quotes in the final value if you’re not careful. In fact that messed up my configuration for a while until I converted the secret back into its original content, using:

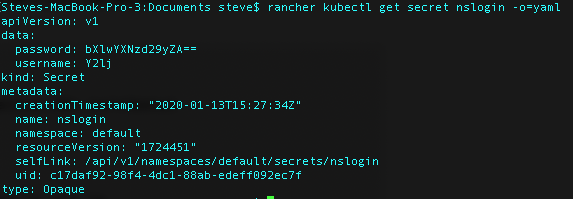

kubectl get secret nslogin -n ingress-citrix -o=yaml

Take the values for password: and username: from the secret and pass them through a base64 decoder just to check that this hasn’t happened (there are also various web sites which can do this for you) by using the following Linux/MacOS command for either the username or password taken from the YAML form above.

echo bXlwYXNzd29yZA== | base64 --decode

Using this source file as a reference, modify/add the following entries (shown in bold) within the file in order to add the name of your namespace:

kind: ClusterRoleBinding
 apiVersion: rbac.authorization.k8s.io/v1beta1
 metadata:
   name: cic-k8s-role
 roleRef:
   apiGroup: rbac.authorization.k8s.io
   kind: ClusterRole
   name: cic-k8s-role
 subjects:
 kind: ServiceAccount
 name: cic-k8s-role
 namespace: ingress-citrix
apiVersion: v1
kind: ServiceAccount
metadata:
  name: cic-k8s-role
  namespace: ingress-citrix
apiVersion: apps/v1
 kind: Deployment
 metadata:
   name: cic-k8s-ingress-controller
   namespace: ingress-citrix
 (entry continues)

Be aware – the default CIC configuration creates a cluster role which will see events across the whole system, however this can be deliberately (or mistakenly) restricted to only watching API events in specific namespaces if your role contains:

kind: Role

instead of:

kind: ClusterRole

or if you add a NAMESPACE environment variable when defining the env: section of your CIC deployment manifest.

Finally, add/edit the following entries to define how to contact your Citrix ADC i.e. the NetScaler management IP (NS_IP) and virtual server IP (NS_VIP) to be used for LB/content switching your ingress (the front door)

env:
         # Set NetScaler NSIP/SNIP, SNIP in case of HA (mgmt has to be enabled)
         - name: "NS_IP"
           value: "192.168.0.99"
         - name: "NS_VIP"
           value: "192.168.0.110"
         - name: "LOGLEVEL"
           value: "INFO"
args:
           - --ingress-classes
             citrix
           - --feature-node-watch
             true

NB – the --feature-node-watch option allows NetScaler to create routes automatically in order to reach the backend pod network addresses

NB – the LOGLEVEL default value is DEBUG, you might want to leave this as an unspecified value until you’re happy with the functionality, and then change it to INFO as above.

The version of Citrix Ingress Controller is specified within this YAML file, hence if you wish to upgrade your CIC version it can be modified and redeployed (as long as no other changes to your deployment are required)

image: "quay.io/citrix/citrix-k8s-ingress-controller:1.6.1"

After updating the above entries as citrix-k8s-ingress-controller.yaml save the modified YAML file and then deploy it using kubectl

kubectl create -f citrix-k8s-ingress-controller.yaml

Check that your Citrix Ingress Controller container has deployed correctly:

kubectl get pods -n ingress-citrix

NB – in the following examples you can ignore the rancherpart of the above command, the kubectl statements are being proxied through Rancher in order to reach the correct cluster

Validate the installation of Citrix Ingress Controller

Once CIC is online you can access the logs generated by the container by switching the name of your container into the following command:

kubectl logs cic-k8s-ingress-controller-9bdf7f885-hbbjb -n ingress-citrix

You’ll want to see the following highlighted section within the log file which shows that CIC was able to connect to the Nitro interface and create a test vserver (which coincidentally validates that it was able to locate and use the secret which was created to store the credentials!):

2020-01-10 10:45:50,144  - INFO - [nitrointerface.py:_test_user_edit_permission:3729] (MainThread) Processing test user permission to edit configuration
 2020-01-10 10:45:50,144  - INFO - [nitrointerface.py:_test_user_edit_permission:3731] (MainThread) In this process, CIC will try to create a dummy LB VS with name k8s-dummy_csvs_to_test_edit.deleteme
 2020-01-10 10:45:50,174  - INFO - [nitrointerface.py:_test_user_edit_permission:3756] (MainThread) Successfully created test LB k8s-dummy_csvs_to_test_edit.deleteme  in NetScaler
 2020-01-10 10:45:50,188  - INFO - [nitrointerface.py:_test_user_edit_permission:3761] (MainThread) Finished processing test user permission to edit configuration
 2020-01-10 10:45:50,251  - INFO - [nitrointerface.py:_perform_post_configure_operation:575] (MainThread) NetScaler UPTime is recorded as 7225

At this point the Citrix Ingress Controller container will sit there listening out for any Kubernetes API calls which it might be interested to assist with, e.g. creation of an ingress or load balancer object. By default Citrix should pick up any ingress creation event, but in many environments you’ll already have NGINX deployed for various reasons (e.g. it’s a functional part of accessing a dashboard for instance).

The way that you can avoid getting things tangled up is by deliberately using ingress class annotations in your specifications. In this way other ingress controllers will ignore your requests to build an ingress but CIC will jump straight in to help. The annotation which is used for this is called:

kubernetes.io/ingress.class:"Citrix"

Deploying an application

Let’s start by deploying a simple application into the default namespace. The reason we’re going to do this is two-fold, firstly it is simple and most likely to work, and secondly it verifies that CIC is able to see services and ingresses outside of its own namespace. I like to use a hello-world image from Tutum because it tells us a little bit about where it’s running when you access the page.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-world
  namespace: default
spec:
  selector:
    matchLabels:
      run: hello-world
  replicas: 1
  template:
    metadata:
      labels:
        run: hello-world
    spec:
      containers:
      - name: hello-world
        image: tutum/hello-world
        ports:
        - containerPort: 80

Create a new YAML file and save it as deploy-hello-world.yaml, then use kubectl to deploy it to Kubernetes. You’ll see that I’ve prepended rancher in all of my examples but you can omit that if you’re not using Rancher

kubectl apply -f deploy-hello-world.yaml

Creating a service

Now that the application is running in a container you’ll need to create a service using the following YAML. Save it as expose-hello-world.yaml. You could use a type spec of ClusterIP or NodePort – it doesn’t matter when CIC is configured with --feature-node-watch=true although the default is actually ClusterIP.

apiVersion: v1
kind: Service
metadata:
  name: hello-world
  namespace: default
  labels:
    run: hello-world
spec:
  type: NodePort
  ports:
  - port: 80
    protocol: TCP
  selector:
    run: hello-world
kubectl apply -f expose-hello-world.yaml

Defining your ingress

An ingress is a rule which directs incoming traffic to a host address or a given path through to the backend application. It’s quite important to know that an ingress itself is just a rule, there may be load balancers or ingress controllers which receive incoming traffic in your environment but the ingress assists in directing that flow to the backend application.

Again the use of the ingress class kubernetes.io/ingress.class:"Citrix" is an essential component of the below ingress example. It ensures that CIC ‘notices’ the new ingress definition and tells it that it should instruct the Citrix ADC to build load balancing or content switching vservers to make sure your traffic is received when the outside world attempts to talk to your application.

In this ingress example we are going to simulate a scenario where you have a path based entry point into your application, which itself then redirects to the container’s root page. Create a new YAML file with the following content and call it ingress-hello-world.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: hello-world-ingress
  namespace: default
  annotations:
   kubernetes.io/ingress.class: "citrix"
spec:
  rules:
  - host:  www.helloworld.com
    http:
      paths:
      - path: /hello-world
        backend:
          serviceName: hello-world
          servicePort: 80

NB The author, his company and this post has nothing whatsoever to do with any websites or businesses operating on any real domains such as ‘helloworld.com’. It is chosen simply as a convenient example.

kubectl apply -f ingress-hello-world.yaml

At this point, if everything has worked correctly you should be able to make a host file or DNS entry for www.helloworld.com (of course you could use anything else) which points to the same IP address you used to define the NS_VIP address of your load balancer in the Citrix Ingress Controller configuration (citrix-k8s-ingress-controller.yaml). In the examples above the mapping would be:

www.helloworld.com <---> 192.168.0.110

You’ll see the virtual IP now created for you within the Citrix ADC in two places, firstly a new content switch:

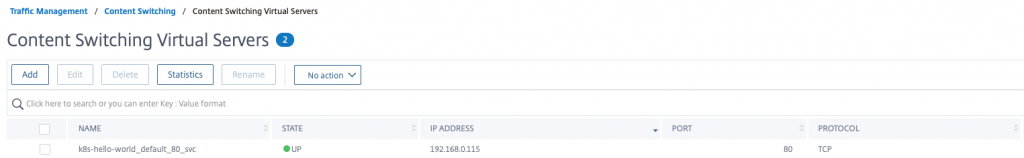

A new content switch with the IP address specified in NS_VIP entry, 192.168.0.110

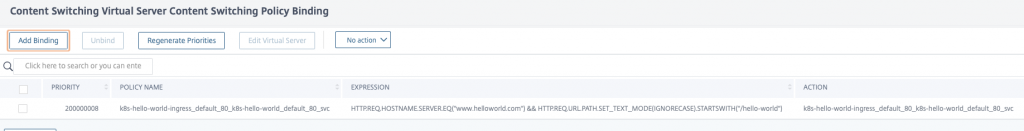

This new content switch has one or more expressions which match traffic to actions (created through ingress definitions):

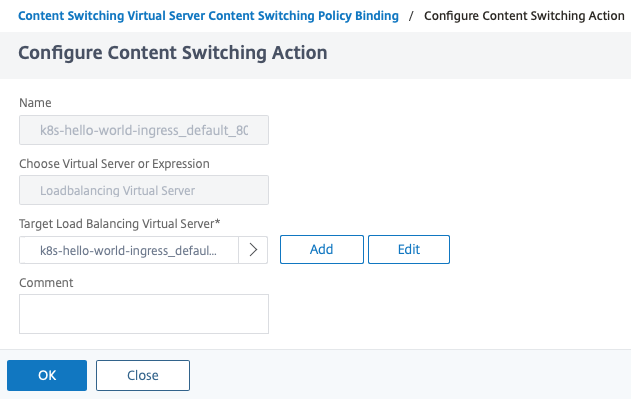

Therefore any incoming HTTP request matching the www.helloworld.com host where the request URL includes pages starting with the /hello-world location will be sent to the second newly created object – the vserver defined in the action below:

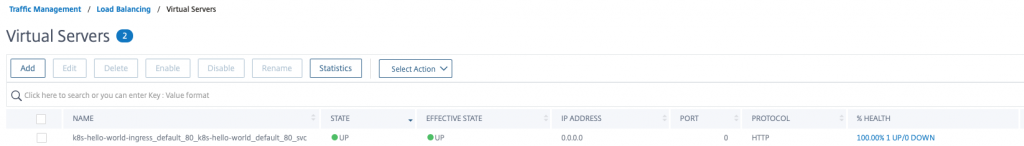

A new load balancing vserver has been created with address 0.0.0.0

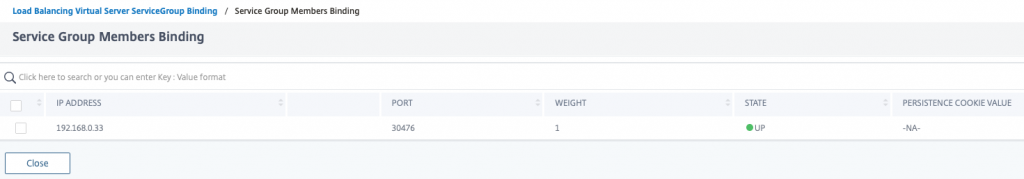

This LB vserver includes a service group whose members are actually represented by the pods where the application is currently running. If you changed the deployment specification to include more replicas then you would see more nodes participating in the service group. Citrix ADC will monitor the health of the exposed node ports in order to ensure that traffic is only directed onto running pods.

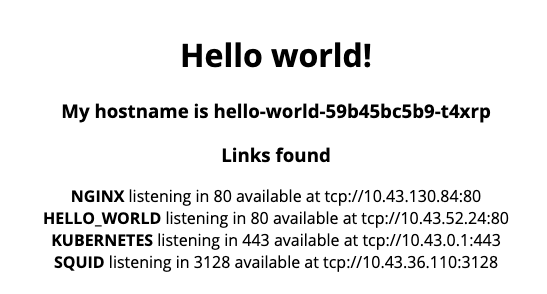

And now when we visit the page, via the hostname and URL path defined on the ingress we should now see:

Adding a rewrite policy

Let’s say that you have a single ingress controller which is exposing endpoints on a path basis, e.g. /myapproot but the application available on that service is expecting /myapproot/ instead. Some applications I’ve seen won’t respond properly unless you rewrite your request URL to have the trailing forward slash. Fortunately Citrix Ingress Controller and ADC are able to take care of this through a rewrite rule.

Before you can use this you’ll need to deploy the Custom Resource Definitions for rewrite using the following instructions.

Download the CRD for rewrite and responder YAML from this Citrix URL. Save it as rewrite-responder-policies-deployment.yaml and then deploy it using

kubectl create -f rewrite-responder-policies-deployment.yaml

NB One very interesting ‘gotcha’ here is that if you associate a CRD with a namespace then it will only create rewrite policies and actions for services in that namespace, so I would recommend simply using the simplest form of the command shown above without placing the CRD into the ingress-citrix namespace used in this blog’s example.

Now that is deployed you should adapt the following YAML in order to define how the app rewrite should function and then save it as cic-rewrite-example.yaml:

apiVersion: citrix.com/v1
kind: rewritepolicy
metadata:
 name: httpapprootrequestmodify
 namespace: default
spec:
 rewrite-policies:
   - servicenames:
       - hello-world
     rewrite-policy:
       operation: replace
       target: http.req.url
       modify-expression: '"/hello-world/"'
       comment: 'HTTP app root request modify'
       direction: REQUEST
       rewrite-criteria: http.req.url.eq("/hello-world")
kubectl create -f cic-rewrite-example.yaml

Using a Load Balancer service instead of Ingress

In the example above I outlined how to create a hello-world deployment and service in order to correctly present an application via an ADC using ingress. However ingress will only work for HTTP/HTTPS type traffic and cannot be used for other services. One additional method you can use for other traffic is to define a service of type LoadBalancer rather than any other option, e.g. ClusterIP, NodePort.

Citrix Ingress Controller has a specific annotation for this scenario which can be added to the service definition to add the IP address which ADC should use. This is the equivalent of a cloud-provider based load balancer in your on-prem Kubernetes environment where you might not use ingress at all.

apiVersion: v1
kind: Service
metadata:
  name: hello-world
  namespace: default
  annotations:
    service.citrix.com/frontend-ip: '192.168.0.115'
  labels:
    run: hello-world
spec:
  type: LoadBalancer
  ports:
  - port: 80
    protocol: TCP
  selector:
    run: hello-world

Save the YAML example above into cic-loadbalancer-example.yaml and apply it.

kubectl create -f cic-loadbalancer-example.yaml

If you now examine the service which is created it should be apparent that the type has now changed from NodePort or ClusterIP to LoadBalancer. The external IP address is now shown, as defined within the service.citrix.com/frontend-ip: '192.168.0.115' annotation.

Citrix ADC will now direct traffic arriving at that IP address through to any pods which match the label selector. This method allows you to quite simply plug the outside world in to your Kubernetes application infrastructure at L4 without using ingress or path matching rules.

Summary

Citrix Ingress Controller is well worth investigating if you are beginning to implement on-prem Kubernetes based applications and already have an investment in Citrix ADC. If you need additional features such as DDoS protection, advanced rewrite, TCP optimisations etc. then CIC offers quite a lot of benefits over a simple NGINX proxy. The next article planned in this series will examine the sidecar Citrix ADC CPX deployment and how this can enhance visibility of inter-container communication.

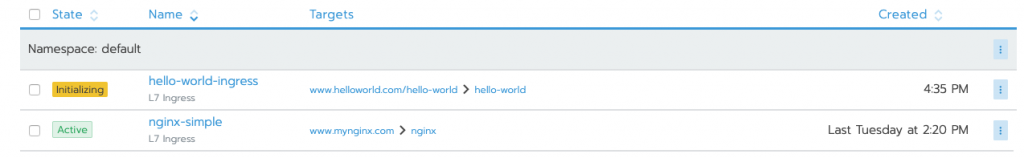

Addendum – Rancher specific ingress issue with Citrix Ingress Controller

This section has been included here in order to highlight a specific issue which is currently occurring in CIC 1.6.1 and Rancher 2.3.4 releases. It seems to be a purely cosmetic issue however it’s been the subject of a recent call I had with some of the Citrix people responsible for CIC who confirmed the behaviour with me. Basically when an ingress is created it is successfully created by CIC but its status does not move from ‘Initializing’ to ‘Active’ in Rancher. This is because Rancher is awaiting the External-IP value to be updated in the Status, but this does not occur because CIC doesn’t mandate that this be actively reported. I’ll update/remove this section from the post if and when this is resolved.

Upgrading vyOS VMware appliance to latest release

In order to troubleshoot a vyOS issue which we’ve been experiencing lately I attempted to upgrade to the latest vyOS release on a .OVA deployed appliance that was running the older 1.2.1 release.

The vyOS upgrade documentation shows the command required to install a new version is simply:

add system image https://downloads.vyos.io/rolling/current/amd64/vyos-1.2.0-rolling%2B201810030440-amd64.iso

However later on in the same article the command response shows the error:

We do not have enough disk space to install this image!
We need 344880 KB, but we only have 17480 KB.
Exiting…

So what is using the space on the appliance and how can we resolve this issue?

We do not have enough disk space to install this image!

Basically, using ‘sudo du -hs /var’ shows us that 968MB of data is consumed within the /var folder and most of this relates to the wtmp and wtmp.1 files. What are those files? They are simply large binary rolling log files which are written to in order to record any login attempts, with wtmp.1 being the rolled up previous versions which are being retained.

We don’t need anything close to that level of logging in our lab environments, so the following commands modify the retention period and log interval to 1 hour maximum.

sudo nano /etc/logrotate.conf

Edit the lines to change from ‘weekly’ and ‘4’ represent a month’s worth of logs to:

#rotate log files weekly
 hourly
#keep 4 weeks worth of backlogs
 rotate 1

Which should retain a rolling log of any login attempts during the last hour. Once this is done you can delete the previous wtmp.1 rollup, apply the vyOS update and then reboot (once only) in order to apply the latest code version now that you have sufficient space:

sudo rm /var/log/wtmp.1
add system image http://172.20.12.142:8080/vyos-1.2-rolling-201911110217-amd64.iso
sudo reboot

NB – in my example I’m hosting the .ISO file which I downloaded on a simple HTTP web server on the internal network

After you’ve finished the upgrade you could always revert the logging configuration back to the defaults, but the main sticking point here is the limited available space once a rollup of logs has become quite large and I didn’t want to have to fix this again in the future.

Upgrading Citrix XenApp 7.x VDA version using PowerShell

With the advent of XenApp 7 and more recently experiencing the higher frequency of VDA cumulative updates I would generally recommend implementing Citrix Machine Creation Services or other imaging mechanism (such as Provisioning Server) when rolling out new versions of the Virtual Desktop Agent to a large number of catalogs.

However, what happens when you only require one XA server per catalog, or when each one of those servers is handled manually when new application code is deployed? This is more common than you might imagine, especially in Citrix deployments which have per-customer or per-app specific catalogs. The work involved in maintaining a master image can be significant and the serviceability of such relies upon someone knowing how to treat image updates in a way that won’t introduce problems that could arise weeks or months later.

One customer of mine has at least 80 catalogs running one or more XenApp VMs and so it simply doesn’t make sense to maintain a single master image for each, especially when application code updates are delivered frequently. So I set about creating a simple PowerShell script which works in a VMware environment to attach the Citrix upgrade ISO and then run the setup installer within the context of a remote PowerShell session.

Using this method you can easily carry out a bulk upgrade of tens (possibly hundreds) of statically assigned VDAs individually by attaching the ISO and installing the update automatically. The advantage of this time saving approach is that it can even be run in a loop so that the upgrade is only attempted when a server is idle and not running any sessions.

NB – as always, please validate the behaviour of the script in a non-production environment and adjust where necessary to meet your own needs.

Here’s a walkthrough of the script, along with the complete example version included at the end.

  1. The script will load the required plugins from both Citrix and VMware PowerShell modules/plugins (I generally run things like this on the Citrix Delivery Controller and install PowerCLI alongside for convenience)
  2. Request credentials and connect to vCenter via a popup
  3. Request credentials for use with WinRM connections to remote Windows servers via a popup
  4. Create a collection of objects (XA servers) which are powered on, do not have any active sessions and don’t already have the target VDA version installed (see $targetvda variable)
  5. For each VM, sequentially:
    1. Attach the specified .iso image file to the resulting VMs
    2. Determine the drive letter where the XA ISO file has been mounted
    3. Create a command line for the setup installer, and save the command into c:\upgrade_vda.cmd on the XA server
    4. Connect via PowerShell remoting session to the remote XA server
    5. Adjust the EUEM registry node permissions (as per https://support.citrix.com/article/CTX215992)
    6. Execute the c:\upgrade_vda.cmd upgrade script on remote machine via PS session
    7. Disconnect the PowerShell remote session
    8. Reboot the VM via vCenter in order to restart the XA services

Review the script and edit the following variables to reflect your use-case:

$vcentersrv = "yourvcentersrv.domain.com"
$targetvda = '7.15.4000.653'
$isopath = "[DATASTORE] ParentFolderName\XenApp_and_XenDesktop_7_15_4000.iso"

Edit the selection criteria on the VMs which will be upgraded:

$targetvms = Get-BrokerMachine -DesktopKind Shared | Where-Object {($_.AgentVersion -ne $targetvda) -and ($_.PowerState -eq 'On') -and ($_.HostedMachineName -like 'SRV*')}

All servers in my example environment begin with virtual machine names SRV* so this line can be adapted according to the number of VMs which you would like to upgrade, or simply replace with the actual named servers if you want to be more selective:

($_.HostedMachineName -in 'SRV1','SRV2','SRV3')

Finally, consider modifying the following variable from $true to $false in order to actually begin the process of upgrading the selected VMs. I suggest running it in the default $true mode initially in order to validate the initial selection criteria.

$skiprun = $true

Additional work:

I would like additionally to incorporate the disconnection of previous VDA .ISO files from the VM before attempting to upgrade. I have noticed that the attached volume label search e.g. Get-Volume -FileSystemLabel ‘XA and XD*’ that determines the drive letter selection is too wide, and will erroneously detect both XA_7_15_4000.iso and XA_7_15_2000.iso versions without differentiating between them.

I would also like to do further parsing of the installation success result codes in order to decide whether to stop, or simply carry on – however I have used the script on tens of servers without hitting too many roadblocks.

This script could also be adapted to upgrade XenDesktop VDA versions where statically assigned VMs are provided to users.

Final note:

This script does not allow the Citrix installer telemetry to run during the installation because it requires internet access and this generates errors in PowerShell for XenApp servers which can’t talk outbound. You can choose to remove this command line parameter according to your circumstances:

/disableexperiencemetrics

Citrix also optionally collects and uploads anonymised product usage statistics, but again this requires internet access. In order to disable Citrix Telemetry the following setting is used:

/EXCLUDE "Citrix Telemetry Service"

Additionally the Personal vDisk feature is now deprecated, so the script excludes this item in order for it to be removed if it is currently present (so be aware if you’re using PvD):

/EXCLUDE "Personal vDisk"

PowerShell code example:

# Upgrade VDA on remote Citrix servers

if ((Get-PSSnapin -Name "Citrix.Broker.Admin.V2" -ErrorAction SilentlyContinue) -eq $Null){Add-PSSnapin Citrix.Broker.Admin.V2}
if ((Get-PSSnapin -Name "VMware.VimAutomation.Core" -ErrorAction SilentlyContinue) -eq $Null){Add-PSSnapin VMware.VimAutomation.Core}

$vcentersrv = "yourvcentersrv.domain.com"

if ($vmwarecreds -eq $null) {$vmwarecreds = Connect-VIServer -Server $vcentersrv}            # Authenticate with vCenter, you should enter using format DOMAIN\username, then password
if ($creds -eq $null) {$creds = Get-Credential -Message 'Enter Windows network credentials'} # Get Windows network credentials

clear

$targetvda = '7.15.4000.653' #Add the target VDA version number - anything which isn't correct will be upgraded
$isopath = "[DATASTORE] ParentFolderName\XenApp_and_XenDesktop_7_15_4000.iso" #Path to ISO image in VMware
$skiprun = $true #Set this variable to false in order to begin processing all listed VMs

$targetvms = Get-BrokerMachine -DesktopKind Shared | Where-Object {($_.AgentVersion -ne $targetvda) -and ($_.PowerState -eq 'On') -and ($_.HostedMachineName -like 'SRV*')}
Write-Host The following XA VMs will be targeted
Write-Host $targetvms.HostedMachineName
if ($skiprun -eq $true) {write-host Skip run is still enabled; exit}

foreach ($i in $targetvms){

if ($i.AgentVersion -ne $targetvda) {
    Write-Host Processing $i.HostedMachineName found VDA version $i.AgentVersion

    if ($i.sessioncount -ne $null) {Write-Host Processing $i.HostedMachineName found $i.sessioncount users are logged on}

    if ($i.sessioncount -eq 0) {#Only continue if there are no logged-on users

        Write-Host Processing $i.HostedMachineName verifying attachment of ISO image
        $cdstate = Get-VM $i.HostedMachineName | Get-CDDrive
        if (($cdstate.IsoPath -ne $isopath) -and ($cdstate -notcontains 'Connected')) { $cdstate | Set-CDDrive -ISOPath $isopath -Confirm:$false -Connected:$true;Write-Host ISO has been attached}

        $s = New-PSSession -ComputerName ($i.MachineName.split('\')[1]) -Credential $creds
            #Create the upgrade command script using correct drive letters
            Write-Host Processing $i.HostedMachineName -NoNewline
            invoke-command -Session $s {
                $drive = Get-Volume -FileSystemLabel 'XA and XD*'
                $workingdir = ($drive.driveletter + ":\x64\XenDesktop Setup\")
                $switches = " /COMPONENTS VDA /EXCLUDE `"Citrix Telemetry Service`",`"Personal vDisk`" /disableexperiencemetrics /QUIET"
                $cmdscript = "`"$workingdir" + "XenDesktopVDASetup.exe`"" + $switches
                Out-File -FilePath c:\upgrade_vda.cmd -InputObject $cmdscript -Force -Encoding ASCII
                Write-Host " wrote script using path" $workingdir
            }

            #Adjust the registry permissions remotely
            Write-Host Processing $i.HostedMachineName updating registry permissions
            Invoke-Command -Session $s {
                $acl = Get-Acl "HKLM:\SOFTWARE\Wow6432Node\Citrix\EUEM\LoggedEvents"
                $person = [System.Security.Principal.NTAccount]"Creator Owner"
                $access = [System.Security.AccessControl.RegistryRights]"FullControl"
                $inheritance = [System.Security.AccessControl.InheritanceFlags]"ContainerInherit,ObjectInherit"
                $propagation = [System.Security.AccessControl.PropagationFlags]"None"
                $type = [System.Security.AccessControl.AccessControlType]"Allow"}
            Invoke-Command -Session $s {$rule = New-Object System.Security.AccessControl.RegistryAccessRule($person,$access,$inheritance,$propagation,$type)}
            Invoke-Command -Session $s {$acl.AddAccessRule($rule)}
            Invoke-Command -Session $s {$acl |Set-Acl}

            #Execute the command script
            Write-Host Processing $i.HostedMachineName, executing VDA install script
            Invoke-Command -Session $s {& c:\upgrade_vda.cmd} # Runs the upgrade script on remote server
            Remove-PSSession $s #Disconnect the remote PS session
            Restart-VMGuest -VM $i.HostedMachineName -Confirm:$false #Restart the server following either a successful or unsuccessful upgrade
            }
        }
    }

Using MSDeploy to migrate between IIS6 and IIS7/8.5

A recent server replacement task I worked on recently involved migrating content between an IIS6 instance running on Windows Server 2003 R2 and IIS8.5 on Windows Server 2012 R2.

One of the sticking points that arose was that the source and destination switches included the potential options of -source: and -dest: with the webserver60 or webserver switches, according to whether IIS6 or above was being targeted respectively.

However when attempting a cross-version migration it is not possible to sync the content directly when using mismatched webserver and webserver60 switches. Instead, it’s more appropriate to target the IIS metabase index for the web site using –source:metakey=lm/w3svc/1

Here’s a step by step example of the choices which you would use:

Obtain and install the MSDeploy tool on both source and destination servers, including the remote service.

To check the dependencies on the original IIS6 server
msdeploy -verb:getDependencies -source:webServer60

To check the installed modules on the target IIS8.5 server
msdeploy -verb:getDependencies -source:webServer

To check the dependencies on the original IIS6 metabase
msdeploy -verb:getDependencies -source:metakey=lm/w3svc/1

To check the installed modules on the target IIS8.5 metabase
msdeploy -verb:getDependencies -source:metakey=lm/w3svc/1

Once you have determined which options were previously installed on the source IIS instance and manually aligned the settings on the target server you can proceed with the initial synchronisation of the web server content. One way of doing this between servers connected by a slow connection is using a ZIP archive (termed package mode), which should ideally contain credentials encrypted using a password:

To export the files from the source IIS6 server metabase to an encrypted ZIP file, including Application Pools
msdeploy.exe -verb:Sync -source:metakey=lm/w3svc/1 -dest:package=C:\Output\MS_WebDeploy_WebDeploy\servername_6.0_1.zip,encryptPassword=xxx -enableLink:AppPoolExtension

Copy the package file (.zip) to the target server in order to import it.

NB. The IncludeACLs=true option does not do anything when transferring data using the package option (ZIP archive), but doesn’t generate any error

I found that it was necessary to switch the .NET priority order of the migration tool in “C:\Program Files\IIS\Microsoft Web Deploy V3\msdeploy.exe.config” in order to use the earlier .NET version when importing data on the target server.

To import to IIS metabase on target server using the encrypted package
msdeploy -verb:sync -source:package=c:\Output\MS_WebDeploy_WebDeploy\servername_6.0_1.zip,encryptPassword=xxx -enableLink:AppPoolExtension -dest:metakey=lm/w3svc/1

Once you have completed the initial import of the source data on the target server it is often useful to resynchronise the data at a later point, e.g. after applying small changes at the source. This option can also be used directly without using the package based approach outlined previously if you are copying content between servers with a high-speed connection.

To import to IIS metabase on target server by pulling from the source machine, including ACLs

msdeploy -verb:sync -source:metakey=lm/w3svc/1,computername=servername,includeAcls=True -enableLink:AppPoolExtension -dest:metakey=lm/w3svc/1,includeAcls=True

These are fairly simple examples but they should be sufficient to migrate simple HTML or Classic ASP pages between the source and destination servers. You can find links to useful documentation below:

https://www.iis.net/downloads/microsoft/web-deploy

https://docs.microsoft.com/en-us/iis/publish/using-web-deploy/migrate-a-web-site-from-iis-60-to-iis-7-or-above

PowerCLI Get-Tag fails with ‘Could not load file or assembly ‘Newtonsoft.Json, Version=10.0.0.0’

Here’s a simple scenario which I came across today. You would like to work with your vSphere environment using the latest PowerCLI but discover that v6.5.1 is the latest downloadable version on VMware’s website. Hearing that the distribution for this code has now moved to the PowerShell Gallery you open a PS prompt and enter:

PS:\> Install-Module VMware.PowerCLI

The modules are downloaded and installed successfully, and you are able to connect to your vCenter environment:

Connect-VIServer -server vcenterserver.com -user 'DOMAIN\username'

But when you attempt to use a simple command such as:

Get-Tag

you receive an error similar to:

get-tag : 11/10/2018 21:06:20   Get-Tag         Could not load file or assembly 'Newtonsoft.Json, Version=10.0.0.0,
Culture=neutral, PublicKeyToken=30ad4fe6b2a6aeed' or one of its dependencies. The system cannot find the file
specified.
At line:1 char:1

In my case I found that other system components on my VM were using an older version of the Newtonsoft.Json.dll (e.g. Citrix Virtual Desktop Agent) that were found in the file search path before the PowerShell module’s location.

Searching for the file conflict using ProcMon I noticed that the Connect-VIServer cmdlet does indeed find and load a version of this .dll during the connection process, e.g. the one located in:

C:\Windows\Microsoft.NET\assembly\GAC_MSIL\Newtonsoft.Json\v4.0_4.5.0.0__30ad4fe6b2a6aeed\Newtonsoft.Json.dll

However this version is 5.0.5.16108 on my Windows Server 2016 platform and we’re looking for 10.0.0.0 or newer.

Work-around

Retrieve the newer version of the file (supplied with the PowerCLI modules), located for instance in:

C:\Users\username\Documents\WindowsPowerShell\Modules\VMware.VimAutomation.Common\net45

and place a copy in somewhere PowerShell is likely to find it, e.g.:

C:\Windows\System32\WindowsPowerShell\v1.0\Newtonsoft.Json.dll

This simple work-around proved successful for me, but you should check of course to verify all other functionality which might depend on this file before making a similar change in a production environment.

Should the /psc URL work on both HA Platform Services nodes?

I recently ran into a strange issue following the enablement of two PSC 6.5 nodes in an HA configuration, as part of a larger rolling upgrade from vCenter 5.5.

NB – all URLs shown are internal, in use within my lab environment only.

During the migration of the existing customers vCenter environment we had to rehearse the externalisation of PSC from an initial embedded SSO instance. As part of this process the first PSC node in a new site was migrated from an original Window vCenter 5.5 SSO to PSC 6.5, and subsequently a second new node was joined to the first site in order for replication to be established.

I used a Citrix NetScaler to load balance the configuration and noticed at some point after the successful HA repointing was done that I was unable to access the https://hosso01.sbcpureconsult.internal/psc URL.

The second node, https://hosso2.sbcpureconsult.internal/psc worked correctly and redirects to the load balanced address psc-ha-vip.sbcpureconsult.internal for authentication before displaying the PSC client UI.

Irrespective of whichever node is selected I was able to log in to vCenter, then choose Administration, System Configuration, select a node then Manage, Settings or CA without receiving any errors.

If I deliberately dropped the first node out of the load balancing config on the NetScaler I didn’t have any issues when accessing the /psc URL by either host name or load balancer name, but if I tried to connect to the first node by its own DNS name or IP I received an HTTP 400 error and the following entry in:

/storage/log/vmware/psc-client/psc-client.log

[2018-10-08 12:05:20.347] [ERROR] tomcat-http--3 com.vmware.vsphere.client.security.websso.MetadataGeneratorImpl - Error when creating idp metadata.
java.lang.RuntimeException: java.io.IOException: HTTPS hostname wrong:  should be <psc-ha-vip.sbcpureconsult.internal>

It appeared that the HTTP 400 error is because the psc-client Tomcat application doesn’t start up correctly on the first node anymore, along with an error in..

/storage/log/vmware/rhttpproxy/rhttpproxy.log

2018-10-08T13:27:10.691Z warning rhttpproxy[7FEA4B941700] [Originator@6876 sub=Default] SSL Handshake failed for stream <SSL(<io_obj p:0x00007fea2c098010, h:27, <TCP '192.168.0.117:443'>, <TCP '192.168.0.121:26417'>>)>: N7Vmacore3Ssl12SSLExceptionE(SSL Exception: error:140000DB:SSL routines:SSL routines:short read)

I repeated the same series of steps in my lab environment I had experienced on the customer site, and was able to confirm the same behaviour. Let me explain at this point, that all other vCenter functionality was correct and our issue only affected the /psc URL.

Could this be deemed ‘correct’ behaviour?

If I chose https://psc-ha-vip.sbcpureconsult.internal/psc (which is the load balancer address) I was initially only able to connect if the second node is online and happens to be selected.

I wanted to confirm before signing off on the work that it should be possible to access the /psc URL on each node deliberately?

After what seemed like a lot of internal dialogue between myself and my inner tech support dept. (sleepless nights!) I was left wondering what could be going wrong.. especially if this was the documented procedure from VMware?

Good news, I was able to roll back my lab and re-run the updateSSOConfig.py and UpdateLsEndpoint.py scripts – only to find that the /psc URL did indeed load successfully on both nodes with the NetScaler load balancing in place!

So at least I knew that the correct behaviour is that you should be able to open /psc on both appliances.

By examining my snapshots at different stages I was able to identify a difference between the original migration node and the clean appliance:

When you run the updateSSOconfig.py Python script to repoint the SSO URL to the load balanced address it explains that hostname.txt and server.xml were modified:

# python updateSSOConfig.py --lb-fqdn=psc-ha-vip.sbcpureconsult.internal
script version:1.1.0
executing vmafd-cli command
Modifying hostname.txt
modifying server.xml
Executing StopService --all
Executing StartService --all

I was able to locate hostname.txt files (containing the load balancer address) in:

  • /etc/vmware/service-state/vmidentity/hostname.txt
  • /etc/vmware-sso/keys/hostname.txt (missing on node 2, but contained the local name on node 1)
  • /etc/vmware-sso/hostname.txt

but this second hostname file was missing on the second node. Why is this? I guess that it is used transiently during the script execution in order to inject the correct value into the server.xml file.

The server XML file is located in the folder:

/usr/lib/vmware-sso/vmware-sts/conf/server.xml

my faulty node contained the following certificate entries under the connector definition:

..store="STS_INTERNAL_SSL_CERT"
certificateKeystoreFile="STS_INTERNAL_SSL_CERT"..

my working node contained:

..store="MACHINE_SSL_CERT"
certificateKeystoreFile="MACHINE_SSL_CERT"..

So I was able to simply copy the server.xml file from the working node (overwriting the original on the faulty node) and also remove the /etc/vmware-sso/keys/hostname.txt file to match the configuration.

Following a reboot my first SSO node then responded correctly by redirecting https://hosso01.sbcpureconsult.internal/psc to https://psc-ha-vip.sbcpureconsult.internal/websso to obtain its SAML token before ultimately displaying the PSC client UI.

As a follow up, by examining the STS_INTERNAL_SSL_CERT store I could see that the machine certificate being used was issued by the original Windows vCenter Server 5.5 SSO CA to the subject name:

ssoserver,dc=vsphere,dc=local

This store was not present on the other node, and so the correct load balancing certificate replacement must somehow be omitted by one of the upgrade scripts when this scenario occurs (5.5 SSO to 6.5 PSC).

I hope that this bug gets removed by VMware in due course, particularly as more customers are moving to the appliance based model of vCenter 6.x, but this workaround and method should be considered at least if you run into a similar problem.

NB This post is adapted from a longer discussion on VMware Communities page available under https://communities.vmware.com/thread/598140.

Checking VMware Platform Services Controller 6.5 replication

Following installation of a second Platform Services Controller node in a site how will you know if replication is functioning correctly?

Assuming that you’ve got time to wait 30 seconds for each change to be replicated you could first try creating a test user on each node within the vsphere.local domain to verify bidirectional communication. But if you prefer to be a little more scientific or repeat the process programmatically you can follow a simple sequence of steps.

The following article from VMware explains the process, however it does omit a period (.) character at the beginning of the Linux commands such that the steps can’t be followed verbatim.

https://kb.vmware.com/s/article/2127057

I’ve rewritten the steps that I generally follow below:

Login to the PSC appliance over SSH as the root user

Enter the following commands to change directory and execute the vdcrepadmin tool (bearing in mind here that the administrator user is from the single-sign-on vsphere.local domain)

cd /usr/lib/vmware-vmdir/bin

./vdcrepadmin -f showservers -h hopsc01.xyz.company.com -u administrator -w password

This command lists out all of the PSC nodes which have joined the single-sign-on domain:

cn=hopsc01.xyz.company.com,cn=Servers,cn=HeadOffice,cn=Sites,cn=Configuration,dc=vsphere,dc=local
cn=hopsc02.xyz.company.com,cn=Servers,cn=HeadOffice,cn=Sites,cn=Configuration,dc=vsphere,dc=local

Repeat this step on the second (or additional) PSC nodes:

cn=hopsc01.xyz.company.com,cn=Servers,cn=HeadOffice,cn=Sites,cn=Configuration,dc=vsphere,dc=local
cn=hopsc02.xyz.company.com,cn=Servers,cn=HeadOffice,cn=Sites,cn=Configuration,dc=vsphere,dc=local

Enter the following commands to display the replication partners for each node:

./vdcrepadmin -f showpartners -h hopsc01.xyz.company.com -u administrator -w password

ldap://HOPSC02.xyz.company.com

./vdcrepadmin -f showpartners -h hopsc02.xyz.company.com -u administrator -w password

ldap://hopsc01.xyz.company.com

Enter the following commands to display the replication status of each node with its counterpart replication partners:

./vdcrepadmin -f showpartnerstatus -h hopsc01.xyz.company.com -u administrator -w password

Partner: HOPSC02.xyz.company.com
Host available: Yes
Status available: Yes
My last change number: 4676
Partner has seen my change number: 4676
Partner is 0 changes behind.

./vdcrepadmin -f showpartnerstatus -h hopsc02.xyz.company.com -u administrator -w password

Partner: hopsc01.xyz.company.com
Host available: Yes
Status available: Yes
My last change number: 8986
Partner has seen my change number: 8986
Partner is 0 changes behind.

In these examples the change numbers (unique sequence numbers) are specific to the local host, but are not necessarily the same if they were introduced to the site at different times. The important value to pay attention to is whether the replication partner shows that any changes are not yet communicated or if the other partner is unavailable.

Bespoke consulting for Virtualisation and Server Based Computing environments

SBC PureConsult is a specialist IT consultancy dedicated to the  design and implementation of Citrix XenApp/XenDesktop, VMware vSphere and vCloud based projects. Over the last 18 years we have carried out numerous projects in various industry sectors, and in several cases pioneered custom solutions for implementing other vendor’s software upon a virtualised application delivery platform.

We have enjoyed significant success in the Hospitality and Leisure markets and defined the standard for delivering Micros Fidelio’s Opera PMS/ORS product using Citrix XenApp/Presentation Server. In fact, we have  successfully completed PMS deployment projects for a number of top-tier hotel companies including delivery of desktop and application environments for several hotels using a private cloud model.

We have also developed specialist knowledge in the Communications Regulations sector surrounding the best practice implementation of LStelcom AG SPECTRA series of applications in a Citrix XenApp environment. Following success gained in deploying the SPECTRA solution using Citrix XenApp this has become a core strength within our portfolio.

We strongly believe that whilst you can read about our values and core competencies here, talking to us about your specific needs and expectations should be just as rewarding. Please take the time to read through the short introductions to our business and should you have any questions or queries don’t hesitate to discuss them with us.

Click here to view our proposition concerning the implementation of Micros Systems, Inc. Opera using Citrix.

Please contact us to hear about our specialist knowledge working with the LStelcom AG, SPECTRA suite.

Office 365 for Mac, Outlook unread count wrong

I recently received a new MacBook Pro and restored all of my previous applications and data from a Time Travel backup. One small issue that I noticed afterwards was that the Unread mail count (1) was incorrect, since even when I set a Filter to show only unread items there were no remaining mails shown. Despite a quick search for the answer online it seems that Office 365 (Outlook 15.0) for Mac is not widely written about yet. The solution I fell upon was quite simple (please be careful to check that your mailbox is correctly synchronised before beginning):

  1. Select the folder which shows the incorrect item count.
  2. Choose Properties on the folder.
  3. Click Empty Cache, in order to remove the local copies of the mailbox folder items (this assumes you’re using the Exchange mailbox as a primary store and not a POP server etc)

All mail items were then immediately removed from the local mailbox cache, following which you can right click on the folder concerned and then choose Synchronise Now.

This simple fix easily resolved my problem.

Locating Personal vDisk with PowerShell script

Dell vRanger is a backup solution for VMware which I’ve been using for a while to backup a customer’s ESXi environment. It’s generally OK, however the vRanger backup configuration wizard does not allow you to specifically exclude Citrix MCS base image disks which cannot themselves be backed up (.delta disk file types) – instead opting to force you to define the disks to exclude based upon Hard disk 1, Hard disk 2 names which apply to the whole job identically for each VM.

In this example I DO want to backup the pvDisk but DO NOT want to backup the other two disks which are deemed unnecessary. The issue which I’ve got with this approach is that sometimes (and I don’t quite understand why!) the virtual desktops added to the catalog sometimes use Hard disk 3 for the user’s pvDisk and others use Hard disk 2.

Perhaps this is just a timing issue with vCenter but nevertheless I needed to figure out a simple way of easily searching a group of VMs and selecting those which use Hard disk 2, and 3 and create separate backup jobs which exclude the non-backup targets i.e. the delta disk (non-persistent independent) and identity disk (persistent independent).

See below the script which I ended up with after a bit of tinkering. It makes an assumption that the identity disk is less than 1GB in size and that your pvDisk is greater than 1GB (otherwise you may not see anything returned):

#Connect-VIServer -Server vcentersrv1.domain.internal
$VMfilter = 'Win7-XD-C*'
$XenDesktopVMs = Get-VM -Name $VMfilter
Write-Host 'Listing pvDisks names for selected VMs:'foreach ($vm in $XenDesktopVMs) {$hdd=Get-HardDisk -VM $vm | Where {$_.Persistence -eq "Persistent"}foreach ($diskin$hdd | `
where-object {$_.CapacityGB -ge 1}) {Write-Host $vm.Name $Disk.Name '=' $disk.CapacityGB }}
